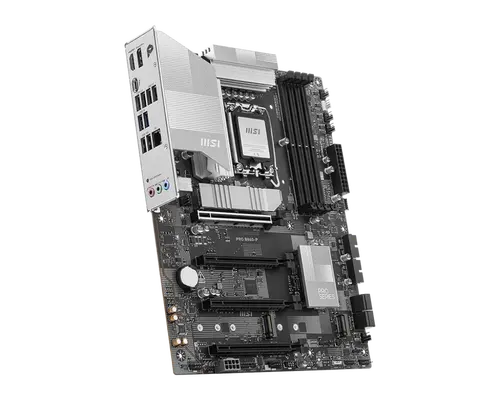

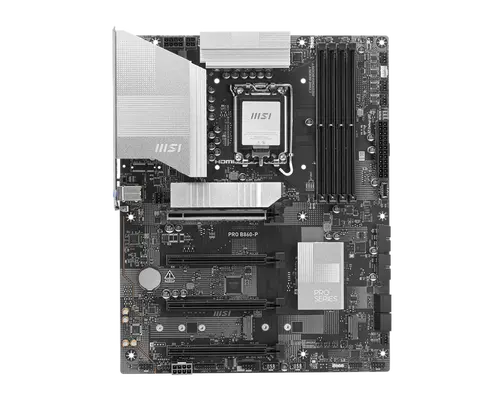

Дънна платка, MSI PRO B860-P /LGA1851

  • MSI
Дънна платка, MSI PRO B860-P /LGA1851
Цена
€171 96 / 336 32 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 23€
+2 години: + 33€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.msi.com/Motherboard/PRO-B860-P
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Chipset
INTEL B860
Expansion slots
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Rear panel I/O
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
DisplayPort
USB 2.0
USB 5Gbps Type-A
5G LAN
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-A
Clear CMOS Button
Connectors
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Lan
Realtek® 8126 5Gbps LAN
OS
Support for Windows® 11 64-bit
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.msi.com/Motherboard/PRO-B860-P
ChipsetINTEL B860
OSSupport for Windows® 11 64-bit
Warranty36 Months
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)
CPU's supportedLGA 1851
Memory typeSupports non-ECC, un-buffered memory
Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory typeMax. overclocking frequency
Memory type• 2DPC 1R Max speed up to 6400+ MT/s
Memory typeSupports Dual-Controller Dual-Channel mode
Memory typeMemory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Memory type• 1DPC 1R Max speed up to 8800+ MT/s
Memory type• 1DPC 2R Max speed up to 7200+ MT/s
Memory type• 2DPC 2R Max speed up to 5600+ MT/s
Memory typeSupports Intel® POR Speed and JEDEC Speed
Memory typeSupports Memory Overclocking and Intel® XMP 3.0
Memory typeSupports CUDIMM
Form FactorATX, 243.84mmx304.8mm
Audio7.1-Channel High Definition Audio
AudioRealtek® ALC897 Codec
Rear panel I/OAudio Connectors
Rear panel I/OHDMI™
Rear panel I/ODisplayPort
Rear panel I/OUSB 2.0
Rear panel I/OClear CMOS Button
Rear panel I/O2x USB 5Gbps Type A (Rear)
Rear panel I/O1x USB 10Gbps Type C (Front)
Rear panel I/O4x USB 2.0 (Rear)
Rear panel I/O4x USB 2.0 (Front)
Rear panel I/O4x USB 5Gbps Type A (Front)
Rear panel I/O5G LAN
Rear panel I/OUSB 10Gbps Type-A
Rear panel I/OUSB 5Gbps Type-A
Rear panel I/O2x USB 10Gbps Type A (Rear)
Rear panel I/O1x Thunderbolt4 ports (Rear)
Rear panel I/OSupports up to 40Gbps transfer rate with Thunderbolt devices
Rear panel I/OSupports up to 20Gbps transfer rate with USB4 devices
Rear panel I/OSupports up to 10Gbps transfer rate with USB 3.2 devices
Rear panel I/OSupports up to 5V/3A,15W power charging
Rear panel I/OEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Rear panel I/OSupports up to 8K display
Rear panel I/OThunderbolt™ 4 40Gbps (Type-C)
LANRealtek® 8126 5Gbps LAN
Expansion SlotsPCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion Slots4x PCI-E x16 slot
Expansion SlotsPCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Expansion SlotsPCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Graphics1x HDMI™
GraphicsSupport HDMITM 2.1, maximum resolution of 4K 60Hz*
Graphics1x DisplayPort
GraphicsSupport HDMI™ 2.1, maximum resolution of 4K 60Hz*
Graphics1x Type-C DisplayPort
GraphicsSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*
GraphicsThunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Features4x EZ Debug LED
I/OAudio Connectors
I/OHDMI™
I/ODisplayPort
I/OUSB 2.0
I/OClear CMOS Button
I/O2x USB 5Gbps Type A (Rear)
I/O1x USB 10Gbps Type C (Front)
I/O4x USB 2.0 (Rear)
I/O4x USB 2.0 (Front)
I/O4x USB 5Gbps Type A (Front)
I/O5G LAN
I/OUSB 10Gbps Type-A
I/OUSB 5Gbps Type-A
I/O2x USB 10Gbps Type A (Rear)
I/O1x Thunderbolt4 ports (Rear)
I/OSupports up to 40Gbps transfer rate with Thunderbolt devices
I/OSupports up to 20Gbps transfer rate with USB4 devices
I/OSupports up to 10Gbps transfer rate with USB 3.2 devices
I/OSupports up to 5V/3A,15W power charging
I/OEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
I/OSupports up to 8K display
I/OThunderbolt™ 4 40Gbps (Type-C)
Storage4x SATA 6G
Storage3x M.2
StorageM.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
StorageM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
StorageM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
StorageSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connectors1x Power Connector(ATX_PWR)
Connectors1x CPU Fan
Connectors2x Front Panel (JFP)
Connectors1x Chassis Intrusion (JCI)
Connectors1x Front Audio (JAUD)
Connectors1x Com Port (JCOM)
Connectors1x TPM pin header(Support TPM 2.0)
Connectors4x USB 2.0 ports
Connectors1x RGB LED connector(JRGB)
Connectors2x Power Connector(CPU_PWR)
Connectors1x Tuning Controller connector(JDASH)
Connectors2x Addressable V2 RGB LED connector (JARGB_V2)
Connectors1x USB 10Gbps Type C ports
Connectors4x System Fan
Connectors1x Combo Fan (Pump_Sys Fan)
Connectors1x Power Connector(PCIE_PWR 8pin)
Connectors4x USB 5Gbps Type A ports
Connectors1x Thunderbolt5 card connector(JTBT5, support RTD3)
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)256
M.2 слотове (count)3
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове (count)2
RGB подсветкаНе
Тегло0.00кг

Дънна платка MSI PRO B860-P – LGA1851, DDR5, PCIe 5.0

Проектирана за процесори Intel Core Ultra (LGA1851), MSI PRO B860-P осигурява стабилна производителност с поддръжка на DDR5 памет и PCIe 5.0 свързаност. Професионалният дизайн гарантира надеждност за натоварени работни натоварвания и игри.

Ключови Предимства

  • Производителност от ново поколение — Поддържа Intel Core Ultra процесори и DDR5 памет за изключителна скорост.
  • Готовност за PCIe 5.0 — Бъдещето на графиката и съхранението с PCIe 5.0.
  • Разширена свързаност — Вграден 2.5G LAN и Wi-Fi 6E за бърза мрежа.
  • Стабилно захранване — Разширен радиатор и висококачествени компоненти за надеждна работа.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
ЧипсетIntel B860
Форм факторATX
Тип паметDDR5
Слотове за памет4
Максимална памет256 GB
M.2 слотове3
SATA портове4
PCIe x16 слотове2
Скорост на LAN2.5 Gbps
Вграден Wi-FiWi-Fi 6E
USB-C портове2
RGB подсветкаНе

Какво има в кутията

  • Дънна платка MSI PRO B860-P
  • Ръководство за потребителя
  • I/O щит
  • SATA кабели (2)
  • M.2 винтове
  • Wi-Fi антена
